- Type : Inkjet Printer
- Print Dimension : 1-12.7mm, Other
- Applicable Industries : Hotels, Garment Shops, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Other
- Condition : New
- Plate Type : Flatbed Printer
- Place of Origin : Guangdong, China
- Brand Name : shuxun
- Usage : Paper Printer, Label Printer, Card Printer
- Automatic Grade : Automatic
- Color & Page : Multicolor
- Voltage : 220v
- Dimensions(L*W*H) : 55X30X20
- Weight : 27 KG
- Warranty : 1 Year
- Ink Type : Sublimation Ink
- Key Selling Points : Wireless
- Marketing Type : Hot Product 2019
- Machinery Test Report : Provided
- Video outgoing-inspection : Provided
- Warranty of core components : 3 months
- Core Components : Other
Product Description
Laser Marking Systems.

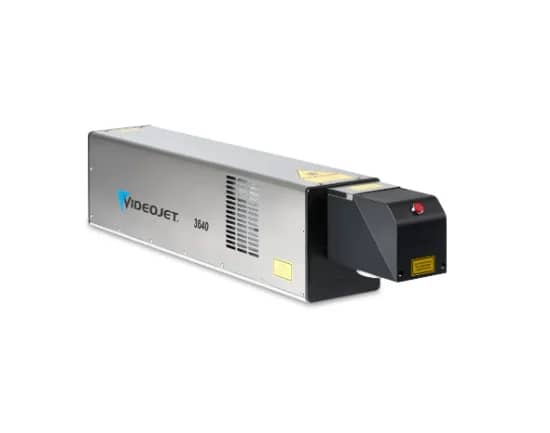

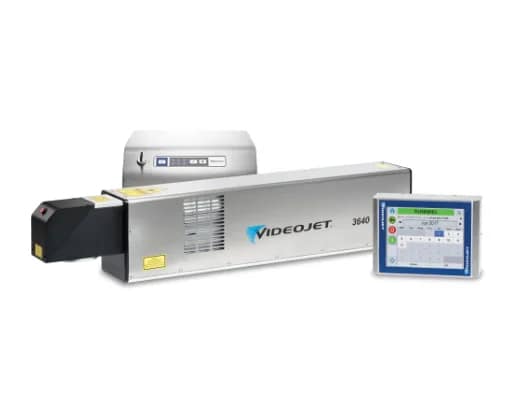

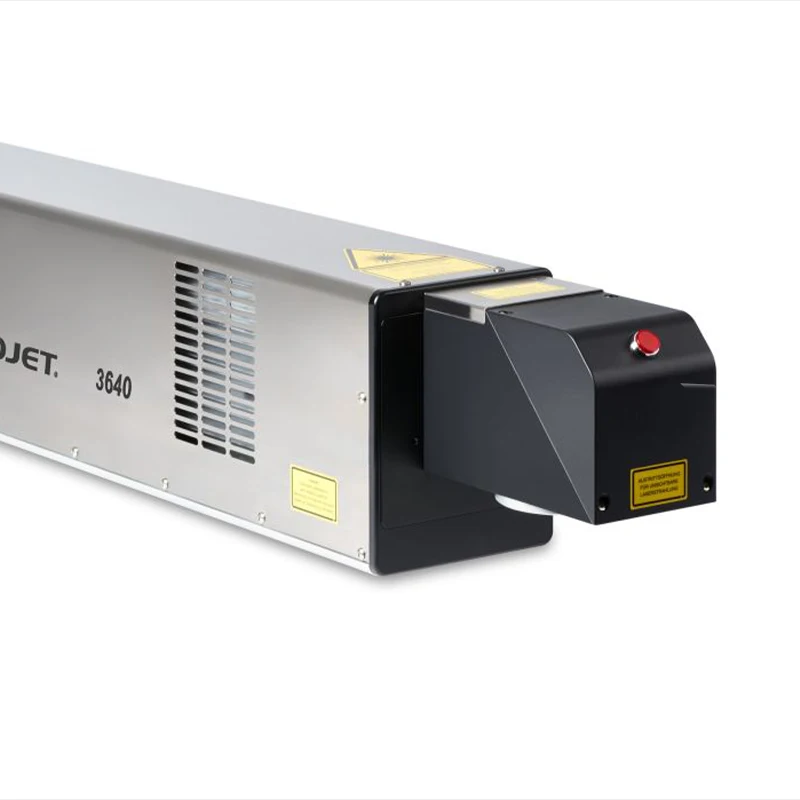

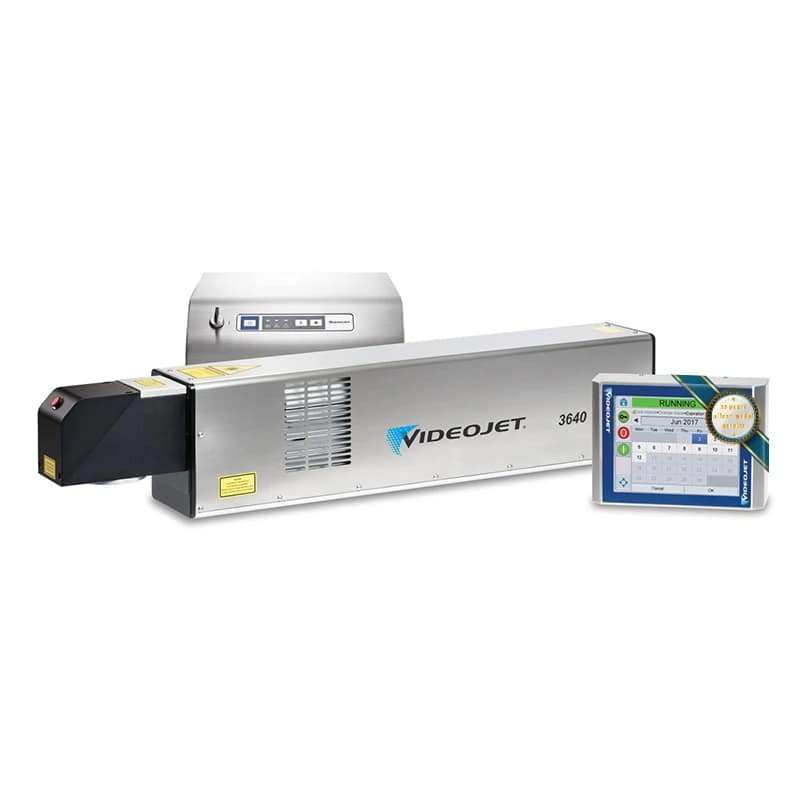

60-Watt CO2 Industrial Laser Marking System for Moderate to High Speed Applications
The 3640 60-Watt CO2 laser marking machine is engineered to help address high-speed and high-volume applications in the
pharmaceutical, tobacco and beverage markets. It is a compact high-speed laser system, and has been designed to process complex
codes at high speeds, with the industry’s widest mark field.
And with optional VideojetConnect™ Remote Service, your team can access Videojet experts to help improve productivity and
troubleshoot potential issues in ways that other printers can’t.
The 3640 60-Watt CO2 laser marking machine is engineered to help address high-speed and high-volume applications in the
pharmaceutical, tobacco and beverage markets. It is a compact high-speed laser system, and has been designed to process complex
codes at high speeds, with the industry’s widest mark field.
And with optional VideojetConnect™ Remote Service, your team can access Videojet experts to help improve productivity and
troubleshoot potential issues in ways that other printers can’t.
Uptime Advantage helps keep productivity up and costs down:.
* Increase throughput with 60 watts of power, optimized for high-speed and high-volume production lines
* Maximize printer availability with long-life, air-cooled laser sources that virtually eliminate maintenance intervals
* Optional VideojetConnect™ Remote Service allows access to Videojet experts to help improve productivity and troubleshoot
potential issues
* Maximize printer availability with long-life, air-cooled laser sources that virtually eliminate maintenance intervals
* Optional VideojetConnect™ Remote Service allows access to Videojet experts to help improve productivity and troubleshoot
potential issues
Industrial design engineered for high performance:
* Suitable for harsh environments, where dust and humidity are a challenge and where the system is regularly washed down
* Available with an ingress protection level of IP65
* Designed for 24/7 operation in beverage, food, pharmaceutical and tobacco line
* Available with an ingress protection level of IP65
* Designed for 24/7 operation in beverage, food, pharmaceutical and tobacco line
Flexibility and simple usability comes as standard:
* Compact, highest-powered laser marking system in the industry
* Easily integrate the laser marking system even into production lines that have space limitations
* Largest marking field reduces the number of lasers that are required to cover multi-lane / wide web applications, reducing
investment and running cost
* Easily integrate the laser marking system even into production lines that have space limitations
* Largest marking field reduces the number of lasers that are required to cover multi-lane / wide web applications, reducing
investment and running cost
Specification
|
Specification
|
Value
|
|
Laser Tube
|
CO2
|
|
Maximum Power
|
60W
|
|
Laser Machine Cooling
|
Air cooled
|
|
Maximum Print Speed
|
2100 characters/sec
|
|
Maximum Line Speed
|
15 m/sec (49 ft/sec)
|
|
Environmental Protection
|
IP54, IP65
|
|
Beam Output
|
Steered Beam
|
|
Laser Source Expected Life
|
45,000 hours
|
|
Laser Wavelength Options
|
10.6 μm, 10.2 μm, 9.3 μm
|
|
Focal Distance Options
|
64 mm (2.50 in) – 600 mm (23.62 in)
|
|
Maximum Mark Window
|
601 x 440 mm (23.66 x 17.32 in)
|
|
Standard I/O Connectivity
|
Internal Terminal Connections
|
|
Standard User Interface
|
Handheld
|
|
Optional User Inteface
|
PC, CLARiTY™ Laser Controller, TCS
|
|
Umbilical
|
Detachable , 3 lengths
|
|
Plant Air Used
|
No
|
|
Certifications/Approvals
|
CE, TÜV/NRTL, FCC
Compliance (no certification required): ROHS, CDRH/FDA |
