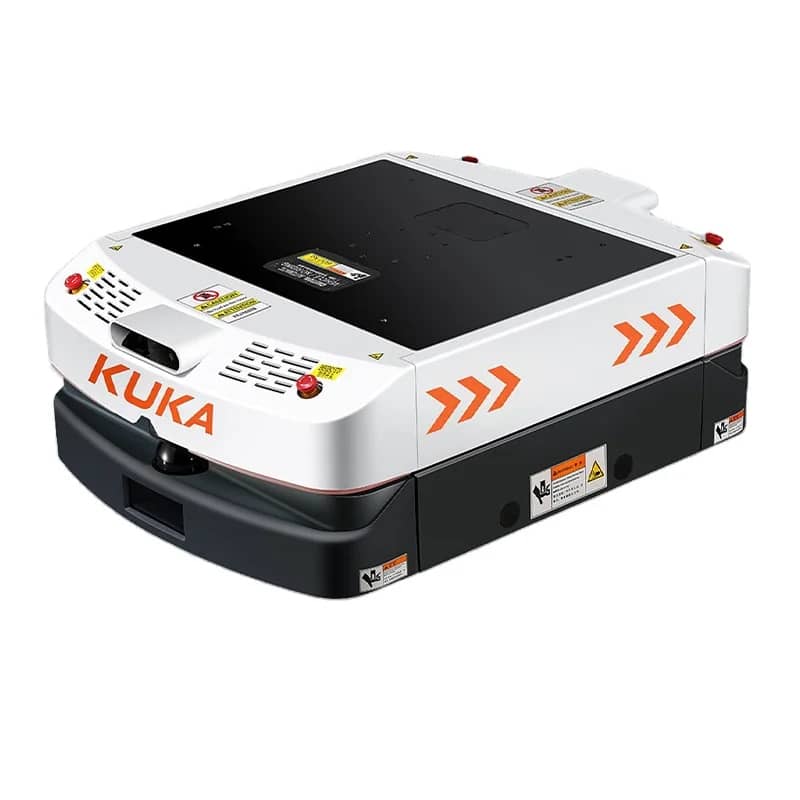

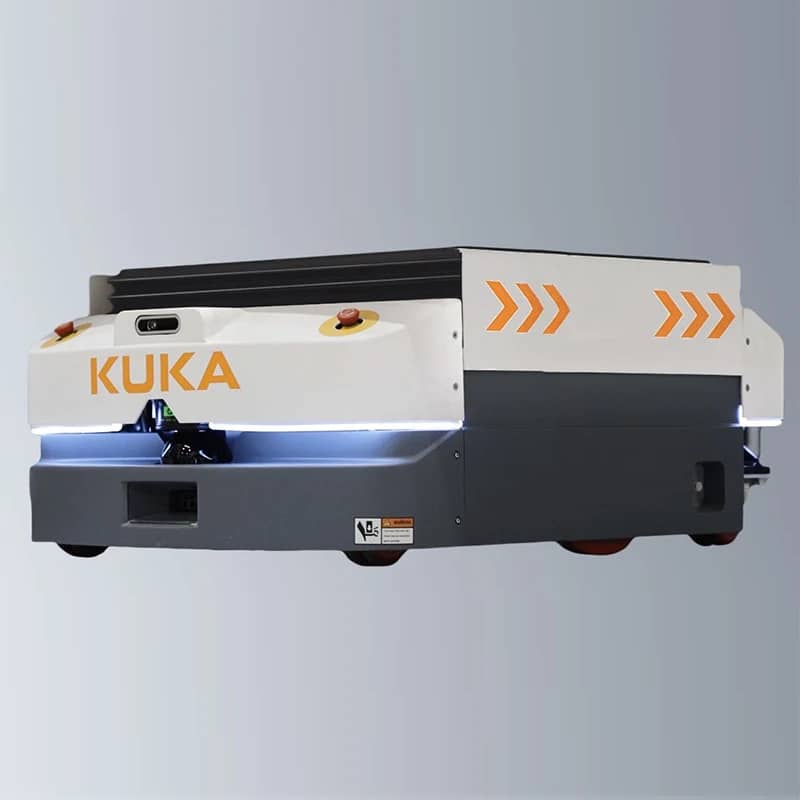

Next-Level Industrial Intralogistics:KUKA KMP 600-S diffDrive Mobile Platform

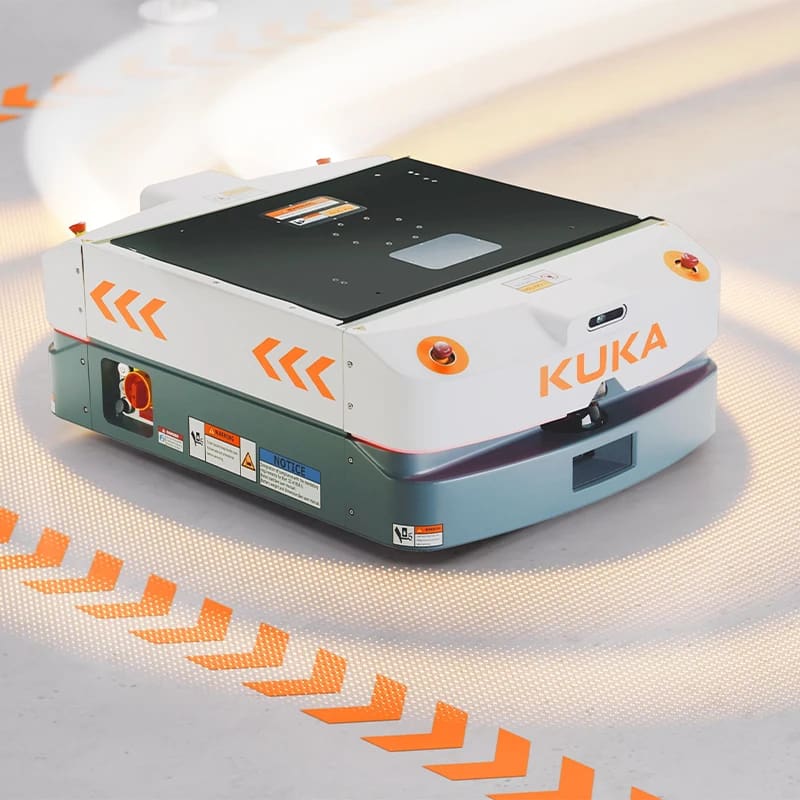

The KUKA Mobile Platform KMP 600-S diffDrive opens up new avenues and provides greater flexibility for production intralogistics.As an automated guided vehicle (AGV) with a payload of up to 600 kilograms, the KMP 600-S diffDrive needs no safety fencing, so it enables maximum freedom of movement for employees. Laser scanners mounted at the front and rear provide maximum safety and allow for high speeds in all directions of travel when cycle times require it.

AGVs automatically bring required goods and raw materials to the right place at the right time. They take on physically demanding transportation tasks, and use comprehensive safety technology so they can share passageways with human operators and conventional industrial trucks. With camera-based 3D object detection, they integrate seamlessly into existing production environments. The KMP 600-S diffDrive also can expand with 3D object detection for autonomous detection of obstacles from 50 mm to 2.1 m above the ground. At the same time, the KMP 600-S diffDrive is ideally equipped for the tough everyday environment of industrial production. Its IP 54 design always enables it to work reliably even under adverse conditions – including water spray and dust.

* Front and rear-mounted laser scanners
* 3D obstacle detection optionally available
* Four emergency stops
* Eight safety zones at both the front and rear of the vehicle

* The AGV travels up to 2 meters per second
* Full speed in all directions of travel
* Integrated lifting device for lifting up to 60 mm in less than 3 seconds

* Optimally equipped for the daily work of industrial production
* Protected against foreign matter such as (metal) dust
* Protected against water spray from any direction

* Fleet manager software for the entire KUKA AGV portfolio

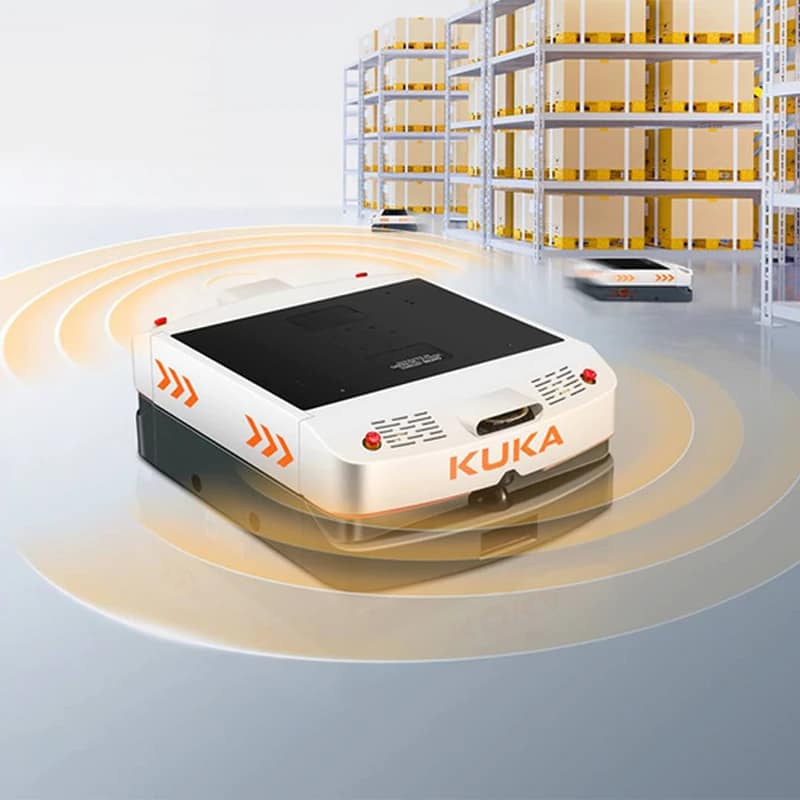

* Navigation via laser scanner and a map of the surroundings created in advance
* Identifies the fastest route – even in complex environments

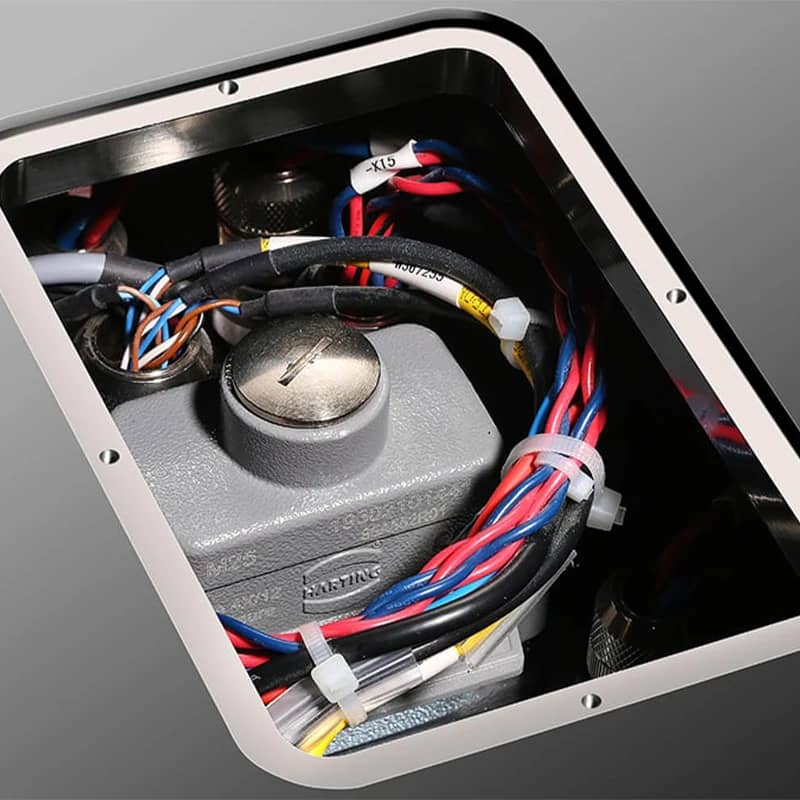

Program applications in Java and use initial teaching for optimal support of in-house material flows. Commission the KMP 600-S diffDrive quickly and easily via a manual controller. Maintenance is just as easy as startup, with tool-free access to AGV components – including rollers, laser scanners and service interfaces – for inspection, firmware updates, calibration and repairs.

The KMP 600-S diffDrive comes with an ideal partner: KUKA.NavigationSolution. This software solution’s smart SLAM algorithm (Simultaneous Localization and Mapping) maps the surroundings and takes over localization in space (on the vehicle itself) as well as coordination of all the automated guided vehicles (on a central computer). The fleet manager uses parameters such as distance and speed to determine the best route on the network of paths – avoiding all collisions. This software handles all mobility requirements.

This HRC-capable vehicle operates flexibly and safely in human operators’ work environment.
