- Type : Inkjet Printer
- Applicable Industries : Metalworking Factory, Food & Beverage Factory, Food Factory, Manufacturing Plant, Printing Shops, Beverage Factory
- After Warranty Service : Online support, Video technical support, Spare parts
- Local Service Location : Sri Lanka, Colombia, India, Mexico, Kyrgyzstan, Kazakhstan, Spain, Italy, Nigeria, Canada, Malaysia, Thailand, Kenya, Russia, UAE, Saudi Arabia, Peru, Brazil, Morocco, South Korea, Germany, South Africa, Ukraine, Australia
- Showroom Location : Spain, Argentina, United States, Germany, France, South Korea
- Condition : New
- Plate Type : dtg printer
- Place of Origin : Guangdong, China
- Brand Name : Videojet
- Usage : Surface coding
- Automatic Grade : Automatic
- Color & Page : single color
- Voltage : 110V/220V
- Year : 2021
- Make : Videojet
- Dimensions(L*W*H) : 110V/220V
- Weight : 21 KG
- After-sales Service Provided : Online support, Video technical support
- Warranty : 1 Year
- Print Dimension : 1-12.7mm
- Ink Type : Fast Dry Ink
- Machinery Test Report : Provided
- Video outgoing-inspection : Provided
- Core Components : Pump, PLC
- Working hours : 10001-20000
- Printheads : 1
- Inks : Pigment Based
- Maximum Lines of Print : 5
- Environmental Protection : IP55 (IP65 Optional)
- Core Life (Maintenance Interval) : Up to 4,000 hours or 12 months (Whichever occurs first)
- Umbilical Length : 3 m (9.8 ft) optional 6 m (19.6 ft)
- Message Storage Capability : 250
- Smart Cartridge : Included
- Plug and Play Printhead Modules : Included
- USB : Included
Product Description
Company Profile
Continuous Inkjet Printers
Continuous Inkjet Printer with Pigmented Inks for High Contrast Coding

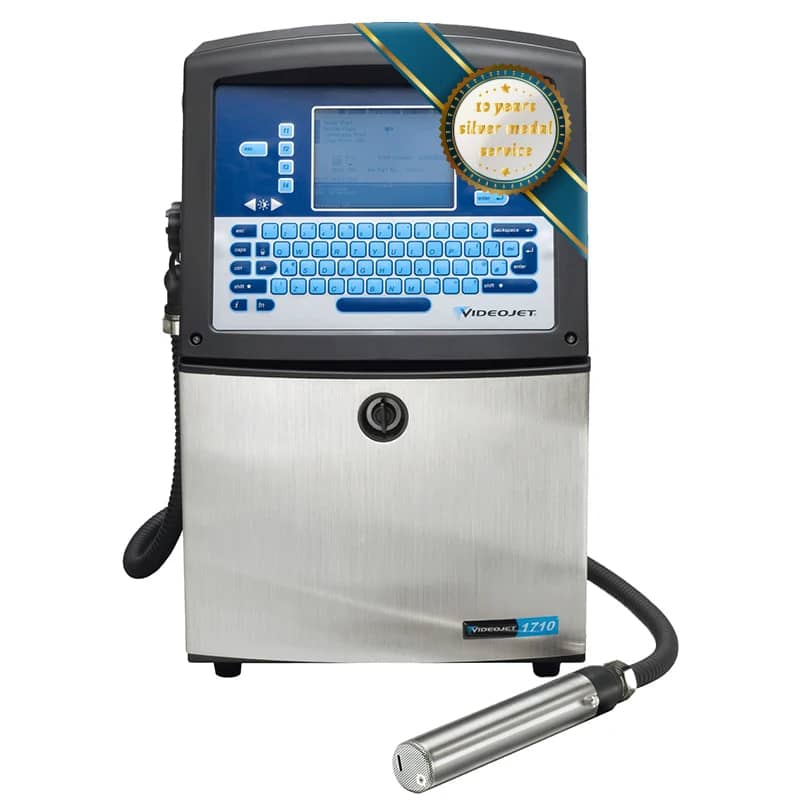

For applications that require easily readable variable data codes on dark or difficult to mark materials, Videojet Technologies
Inc. has designed the Videojet 1710 small character inkjet coder. The printer uses high-contrast, pigmented inks to create bright,
clean codes on surfaces for which dye-based inks are not effective, such as colored glass, rubber tubing, plastic cabling and dark
paperboard. It is capable of printing a variety of fonts in multiple languages, as well as linear bar codes, 2D DataMatrix codes,
custom logos and graphics.
And with optional VideojetConnect™ Remote Service, your team can access Videojet experts to help improve productivity and
troubleshoot potential issues in ways that other printers can’t.
For applications that require easily readable variable data codes on dark or difficult to mark materials, Videojet Technologies
Inc. has designed the Videojet 1710 small character inkjet coder. The printer uses high-contrast, pigmented inks to create bright,
clean codes on surfaces for which dye-based inks are not effective, such as colored glass, rubber tubing, plastic cabling and dark
paperboard. It is capable of printing a variety of fonts in multiple languages, as well as linear bar codes, 2D DataMatrix codes,
custom logos and graphics.
And with optional VideojetConnect™ Remote Service, your team can access Videojet experts to help improve productivity and
troubleshoot potential issues in ways that other printers can’t.
Benefits
Capabilities to meet your fast production lanes:
* Dynamic Calibration™ adjusts jetting parameters automatically to ensure high quality print
* The unique fluid system assures proper dispersion of pigments while printing, or when idle for long periods of time
* Print from 1 to 5 lines of text at high speeds: * Single line max speed = 271 m/min (888 ft/min)
* Dual line max speed = 122 m/min (400 ft/min)
* Tri-line max speed = 67 m/min (221 ft/min)
* Dynamic Calibration™ adjusts jetting parameters automatically to ensure high quality print
* The unique fluid system assures proper dispersion of pigments while printing, or when idle for long periods of time
* Print from 1 to 5 lines of text at high speeds: * Single line max speed = 271 m/min (888 ft/min)
* Dual line max speed = 122 m/min (400 ft/min)
* Tri-line max speed = 67 m/min (221 ft/min)
Engineered for extended runs; Uptime Advantage via:
* CleanFlow™ technology resists ink buildup that can cause ordinary inkjet printers to shut down
* New conical ink reservoir minimizes natural effects of pigment settling
* Long run time between preventive maintenance; Up to 4,000 hours or 12 months (whichever occurs first) core life
* Internal pump means no external air, minimizing potential for contaminants to enter ink stream
* Auto cleaning printhead for fast start-ups even after extended shutdowns
No mess, no waste fluid delivery:
* Innovative fluid management system simply and reliably delivers ink to the products you need coded without significant operator
intervention

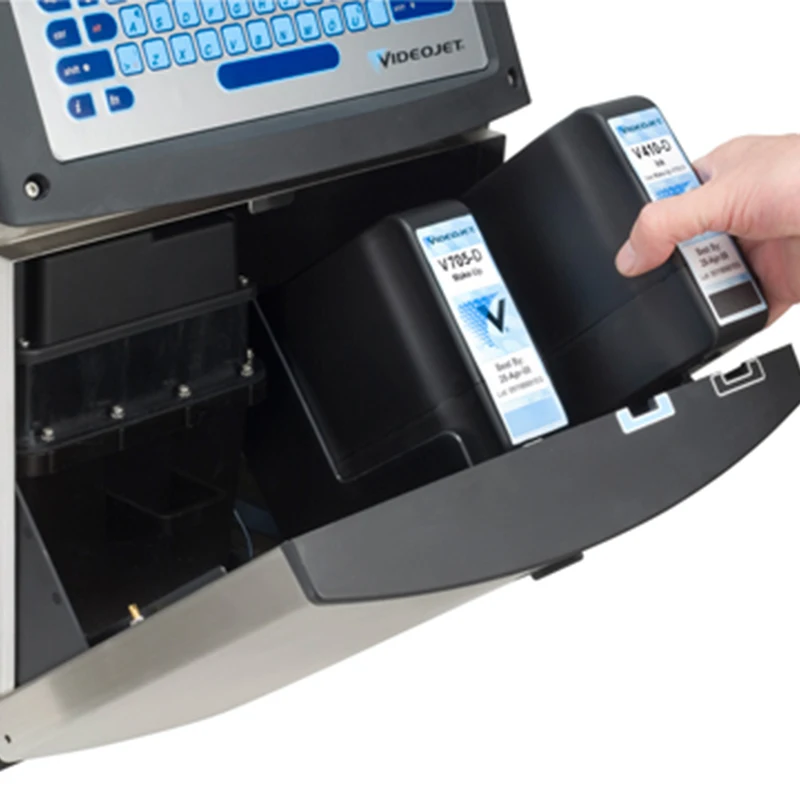

* Smart Cartridge™ fluid delivery system to virtually eliminate spills and help ensure the correct fluids are being used
Simple Usability via Videojet standard CIJ interface:

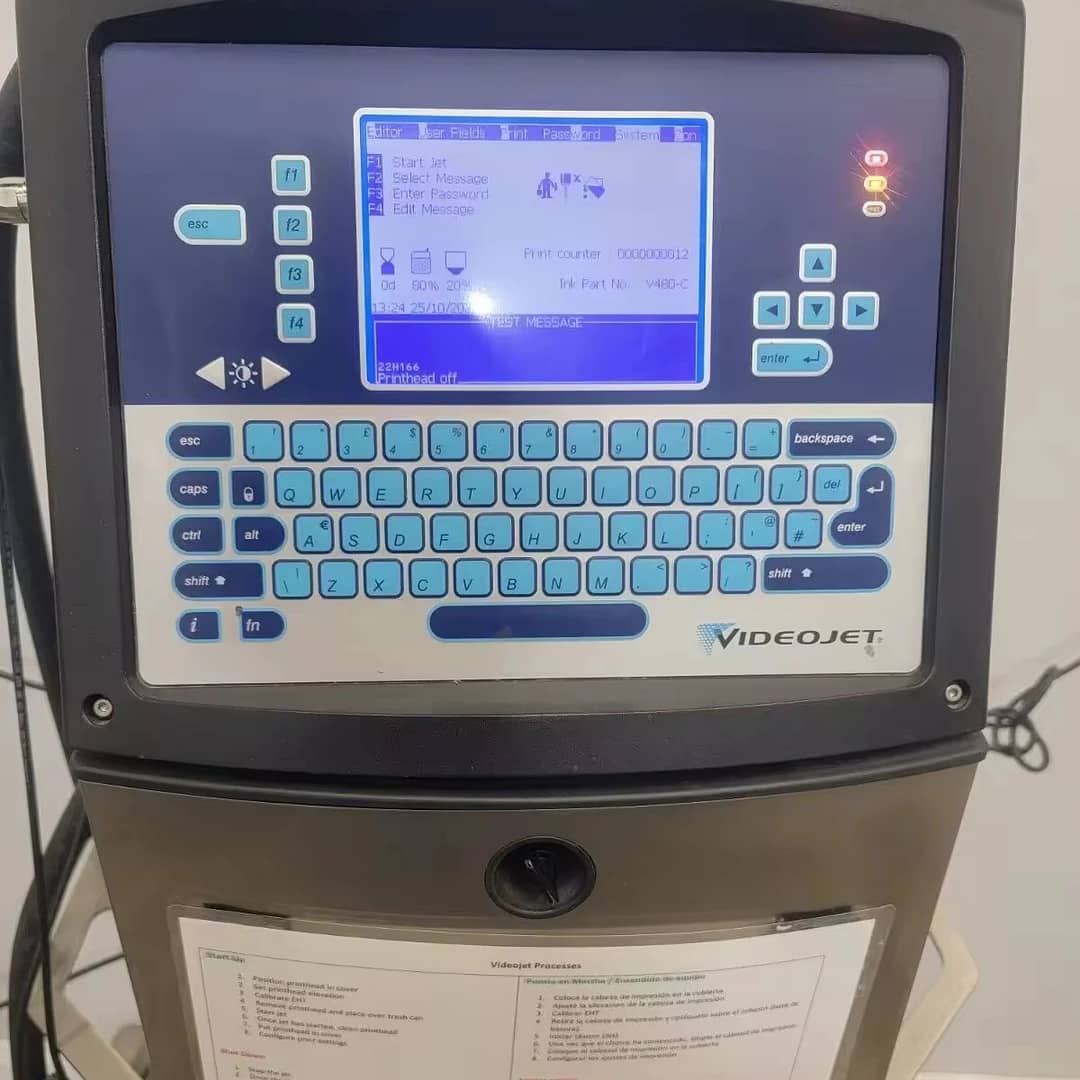

* Bright display with WYSIWYG and function keys for easy operation
* User levels to separate operation from installation and maintenance
* Prompted user fields to help reduce coding errors
|
Specification
|
Value
|
|
Printheads
|
1
|
|
Inks
|
Pigment Based
|
|
Maximum Lines of Print
|
5
|
|
Maximum Line Speed(1)
|
271 m/min (888 ft/min)
|
|
Environmental Protection
|
IP55 (IP65 Optional)
|
|
Core Life (Maintenance Interval)
|
Up to 4,000 hours or 12 months (Whichever occurs first)
|
|
Umbilical Length
|
3 m (9.8 ft) optional 6 m (19.6 ft)
|
|
Message Storage Capability
|
250
|
|
Smart Cartridge™
|
Included
|
|
Plug and Play Printhead Modules
|
Included
|
|
USB
|
Included
|
|
Communications
|
Ethernet and RS-232 Serial
|
|
Positive Air / CleanFlow™
|
Included
|
|
Expanded I/O Ports and Control
|
#
|
|
Display (User Interface)
|
LCD with membrane keyboard
|
00:00
01:07
