- Place of Origin : Shanghai, China
- Brand Name : kuka
- Condition : New
- Warranty : 1year
- Dimension(L*W*H) : 430.5mmx 370mm
- Applicable Industries : Manufacturing Plant
- Weight (KG) : 260 KG
- Showroom Location : None
- Video outgoing-inspection : Provided
- Machinery Test Report : Provided
- Marketing Type : Ordinary Product
- Warranty of core components : 1 Year
- Core Components : PLC
- Load capacity [kg] : 750 – 1300
- Reach [mm] (arm length) : 3202 – 3601

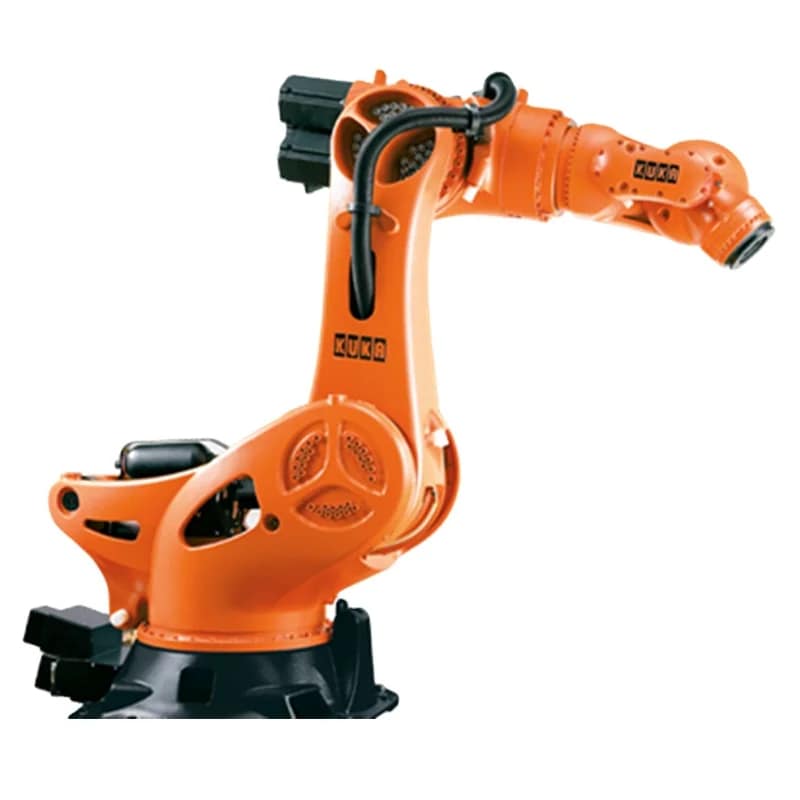

KR 1000 titan
The KR 1000 titan is our powerful robot for heavy loads. The six-axis robot moves very heavy parts and components safely and precisely, even over long distances.

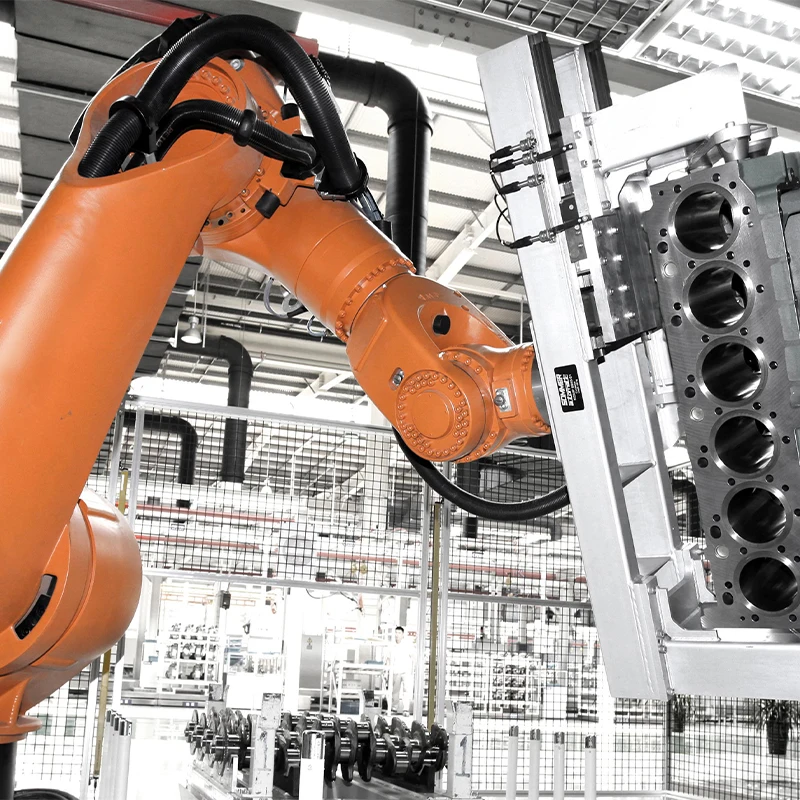

The KR 1000 titan is the first six-axis robot with an open kinematic system and an unparalleled payload capacity. It masters the handling of heavy loads over distances of up to 6.5 meters precisely and quickly. Engine blocks, stones, glass, steel beams, components for ships and aircraft, marble blocks, precast concrete parts – all of these heavy loads are no problem for the KR 1000 titan. For special areas of application, we offer the Foundry variant with the best reach/payload ratio or the version as a palletizing robot for heavy loads of up to 1.3 tonnes.
Advantages.
High dynamic performance
The KR 1000 titan handles the heaviest workpieces and components precisely and safely. With high speed and dynamic acceleration,
it ensures optimal cycle times.
The KR 1000 titan handles the heaviest workpieces and components precisely and safely. With high speed and dynamic acceleration,
it ensures optimal cycle times.
Enormous productivity
Thanks to the accuracy of the KR 1000 titan robot, you can improve your manufacturing quality and reduce costs. The low
interference contours extend the effectively usable work envelope.
Thanks to the accuracy of the KR 1000 titan robot, you can improve your manufacturing quality and reduce costs. The low
interference contours extend the effectively usable work envelope.
Greater flexibility.
The KR 1000 titan offers versatile application options: as a palletizer or combined with linear axes, you can increase your
flexibility. It can be integrated into existing systems easily and without the need to adapt the foundations.
flexibility. It can be integrated into existing systems easily and without the need to adapt the foundations.
KR 1000 titan data overview
|
KR 1000 L750 titan
|
KR 1000 L750 titan F
|
KR 1000 L950 titan PA
|
KR 1000 titan
|
|
|
Payload
|
750 kg
|
750 kg
|
950 kg
|
1000 kg
|
|
Maximum reach
|
3601 mm
|
3601 mm
|
3601 mm
|
3202 mm
|
|
Construction type
|
Standard
|
Standard
|
Palletizing robot
|
Standard
|
|
Version environment
|
Standard
|
Foundry
|
Standard
|
Standard
|
|
Mounting positions
|
Floor
|
Floor
|
Floor
|
Floor
|
|
Protection class
|
IP 65
|
IP 65, IP 67
|
IP 65
|
IP 65
|
|
KR 1000 titan F
|
KR 1000 1300 titan PA
|
KR 1000 1300 titan PA-F
|
||
|
Payload
|
1000 kg
|
1300 kg
|
1300 kg
|
|
|
Maximum reach
|
3202 mm
|
3202 mm
|
3202 mm
|
|
|
Construction type
|
Standard
|
Palletizing robot
|
Palletizing robot
|
|
|
Version environment
|
Foundry
|
Standard
|
Foundry
|
|
|
Mounting positions
|
Floor
|
Floor
|
Floor
|
|
|
Protection class
|
IP 65, IP 67
|
IP 65
|
IP 65, IP 67
|
00:00
02:20
1. who are we?Shanghai Shuxun Technology Co. Ltd was established in 2012, now located in Pudong District,Shanghai.We are packing line supplier focusing on trading industrial robots like ABB and Kuka, cij printer and ink like Videojet, Packaging machines and so on. What sets us apart from other foreign trade companies is that we are a research and development company that not only sells these products, but also offers Packaging line design, implement, personalized customization services with software support. There are more than one hundred staff members in our company. We have a four thousand square meter manufacture plant, and a complete production management/work/control system. We have certifications as production license/product registration other international certificates such as ISO9001, CE. Our products are sold worldwide including America, Canada, Germany, England, Russia, Japan, Turkey, Egypt, Saudi Arabia, Brazil, Mexico, and many other countries. 2. how can we guarantee quality?Customers can deliver packaging lines on-site or remotely for pre acceptance. We provide a free on-site installation, debugging, and acceptance service.ABB, Kuka robots, and videojet inkjet printers are global after-sales services.All devices come with photos when they leave the factory3.what can you buy from us?Robot,Robot Control System,Robot Positioner,CIJ printer,Packaging machine4. why should you buy from us not from other suppliers?We are the largest packaging line manufacturer in China, and we have sold over 600 sets of opening and sealing robot all-in-one machines in China. ABB, KUKA, and videojet are also our globally renowned partners, and we have directly obtained lower prices from the factory5. what services can we provide?Accepted Delivery Terms: null；Accepted Payment Currency:null;Accepted Payment Type: null;Language Spoken:null
