- Place of Origin : Guangdong, China
- Brand Name : kuka
- Application : store in a warehouse
- Condition : New
- Warranty : 1year
- Dimension(L*W*H) : 980x686x255mm
- Applicable Industries : Manufacturing Plant, Energy & Mining
- Weight (KG) : 264
- Showroom Location : Germany
- Video outgoing-inspection : Provided
- Machinery Test Report : Provided
- Marketing Type : Ordinary Product
- Warranty of core components : 1 Year
- Core Components : PLC
- Rated load : 600kg
- Minimum turning radius : 1115mm
- Maximum operating speed (load) : 1.5m/s
- Maximum operating speed (no load) : 2m/s
- position accuracy : ±10mm,±3°
- Maximum operating noise : 75dB(A)
- Battery Type : LFP
- Navigation : Laser SLAM
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
Guangdong
|
|
|
Brand Name
|
kuka
|
|
Condition
|
New
|
|
Applicable Industries
|
Manufacturing Plant, Energy & Mining
|
|
Weight (KG)
|
264
|
|
Showroom Location
|
Germany
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Ordinary Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC
|
|
Rated load
|
600kg
|
|
Minimum turning radius
|
1115mm
|
|
Maximum operating speed (load)
|
1.5m/s
|
|
Maximum operating speed (no load)
|
2m/s
|
|
position accuracy
|
±10mm,±3°
|
|
Maximum operating noise
|
75dB(A)
|
|
Battery Type
|
LFP
|
|
Navigation
|
Laser SLAM
|
Packing & Delivery

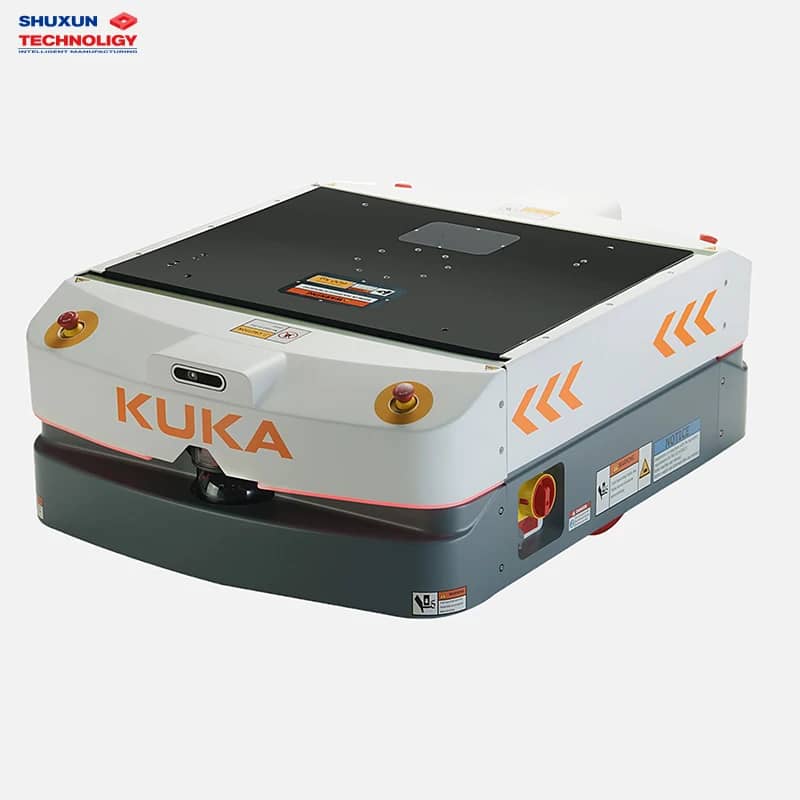

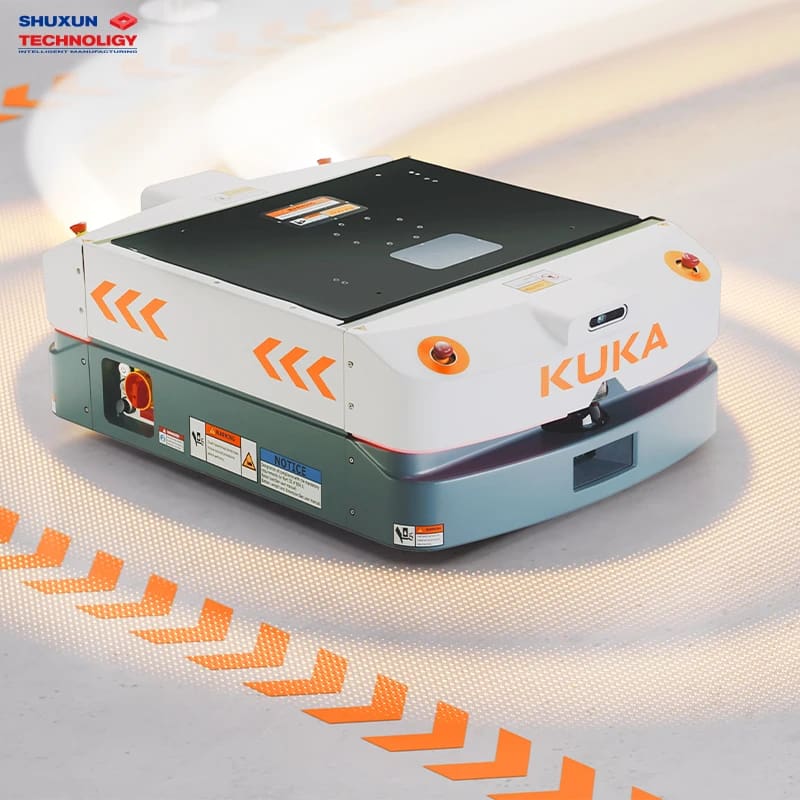

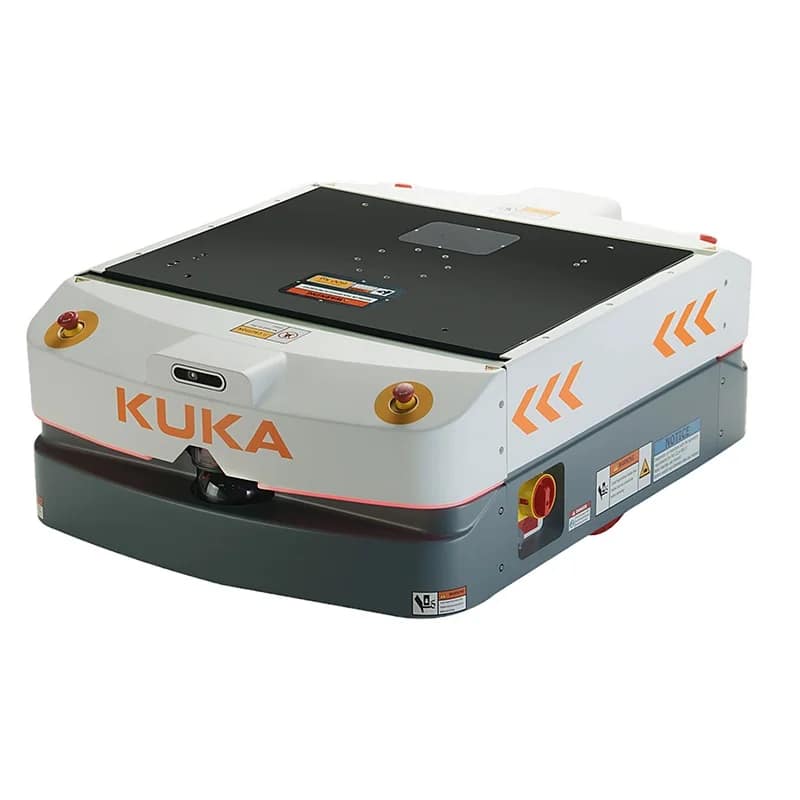

At up to two meters per second, the KUKA KMP 600-S diffDrive mobile platform offers speedy performance – and uses laser scanners and 3D object detection to meet the highest safety requirements. This automated guided vehicle system takes industrial intralogistics to a new level.
Mobile freedom with AGVs: Material transport in dynamic environments
The KUKA Mobile Platform KMP 600-S diffDrive opens up new avenues and provides greater flexibility for production intralogistics.
As an automated guided vehicle (AGV) with a payload of up to 600 kilograms, the KMP 600-S diffDrive needs no safety fencing, so it
enables maximum freedom of movement for employees. Laser scanners mounted at the front and rear provide maximum safety and allow
for high speeds in all directions of travel when cycle times require it.
As an automated guided vehicle (AGV) with a payload of up to 600 kilograms, the KMP 600-S diffDrive needs no safety fencing, so it
enables maximum freedom of movement for employees. Laser scanners mounted at the front and rear provide maximum safety and allow
for high speeds in all directions of travel when cycle times require it.
This HRC-capable vehicle operates flexibly and safely in human operators’ work environment.
AGV advantages for in-house logistics
AGVs automatically bring required goods and raw materials to the right place at the right time. They take on physically demanding transportation tasks, and use comprehensive safety technology so they can share passageways with human operators and conventional industrial trucks. With camera-based 3D object detection, they integrate seamlessly into existing production environments. The KMP 600-S diffDrive also can expand with 3D object detection for autonomous detection of obstacles from 50 mm to 2.1 m above the ground. At the same time, the KMP 600-S diffDrive is ideally equipped for the tough everyday environment of industrial production.
Its IP 54 design always enables it to work reliably even under adverse conditions – including water spray and dust.
AGVs automatically bring required goods and raw materials to the right place at the right time. They take on physically demanding transportation tasks, and use comprehensive safety technology so they can share passageways with human operators and conventional industrial trucks. With camera-based 3D object detection, they integrate seamlessly into existing production environments. The KMP 600-S diffDrive also can expand with 3D object detection for autonomous detection of obstacles from 50 mm to 2.1 m above the ground. At the same time, the KMP 600-S diffDrive is ideally equipped for the tough everyday environment of industrial production.
Its IP 54 design always enables it to work reliably even under adverse conditions – including water spray and dust.
00:00
00:50
FAQ
1. who are we?
We are based in Shanghai, China, start from 2021,sell to North America(30.00%),Western Europe(20.00%),South Asia(10.00%),South America(10.00%),Eastern Asia(10.00%),Africa(10.00%),Eastern Europe(10.00%). There are total about 201-300 people in our office.
We are based in Shanghai, China, start from 2021,sell to North America(30.00%),Western Europe(20.00%),South Asia(10.00%),South America(10.00%),Eastern Asia(10.00%),Africa(10.00%),Eastern Europe(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Robot,Robot Control System,Robot Positioner,CIJ printer,Packaging machine
4. why should you buy from us not from other suppliers?
A 50 person software support team supports personalized customization of robots, with 10 years of experience in the foreign trade industry and partnerships with world-renowned brands such as ABB, KUKA, and Videojet
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
