- Place of Origin : Shanghai, China
- Brand Name : kuka
- Condition : New
- Warranty : 1year
- Applicable Industries : Manufacturing Plant
- Weight (KG) : 260 KG
- Showroom Location : None
- Video outgoing-inspection : Provided
- Machinery Test Report : Provided
- Marketing Type : Ordinary Product
- Warranty of core components : 1 Year
- Core Components : PLC
- Load capacity [kg] : 480 – 800
- Reach [mm] (arm length) : 2800 – 3700

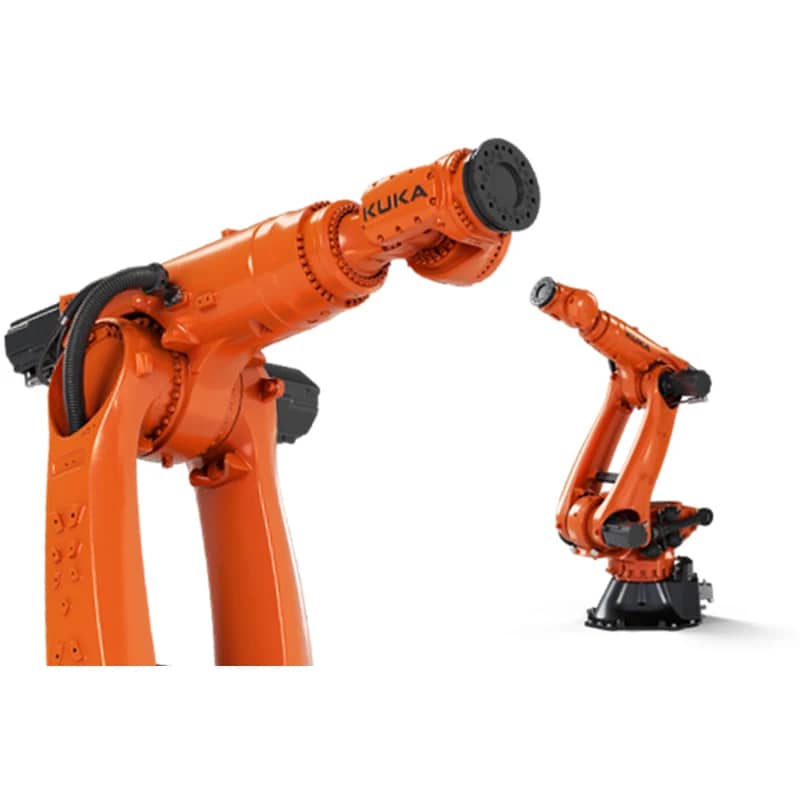

KR FORTEC ultra
The heavy-duty robots, with payloads of up to 800 kg, offer maximum performance in the smallest possible space and feature fast and precise handling of large components with a high moment of inertia.
Developed for high moments of inertia when handling heavy and large workpieces

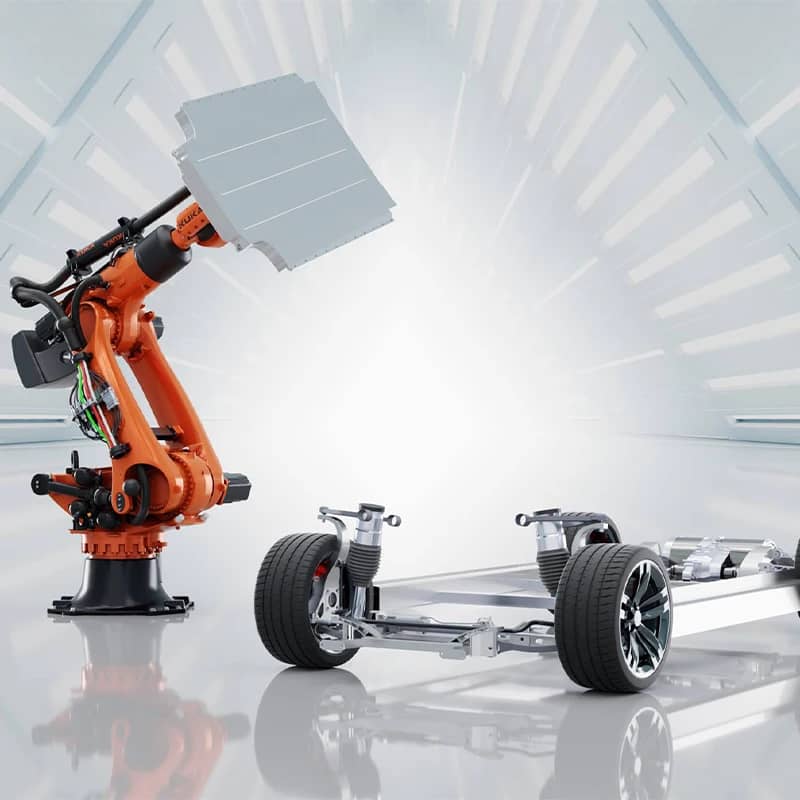

From battery handling to gigacasting. In production, the requirements with regard to payload and reach are increasing sharply in combination with ever higher moments of inertia of the workpieces. The KR FORTEC ultra robots were designed to meet these requirements with maximum efficiency in the smallest possible space. As an intelligent modular and shared parts concept that allows the optimum robot to be selected for an application and adapted in the field. Leading the way in performance, cost-effectiveness and flexibility. Both now and in the future.
Ultra-compact
* Compact design with low weight
* Minimal footprint
* Fits into tiny work cells
* Minimal footprint
* Fits into tiny work cells
Low TCO
* Low maintenance
* Low energy consumption
* Low investment costs
* Low energy consumption
* Low investment costs
Safe and reliable
* System with new KRC control guarantees high reliability
* Certified for high safety in working environment and meets CE requirements
* Certified for high safety in working environment and meets CE requirements
Reduced maintenance costs
* Components with low maintenance requirements
* High accessibility at the robot
* Low maintenance effort with only 3 measures:- Visual inspection
– Lubrication
– Oil change every 20,000 h
* High accessibility at the robot
* Low maintenance effort with only 3 measures:- Visual inspection
– Lubrication
– Oil change every 20,000 h
The KR CYBERTECH ARC product family is optimized for continuous-path applications, for example for arc welding and the application
of adhesives and sealants.
of adhesives and sealants.
|
KR 480 R3400-2
|
KR 480 R3700-2
|
KR 560 R3100-2
|
KR 560 R3100-2 HI
|
|
|
Payload
|
480 kg
|
480 kg
|
560 kg
|
560 kg
|
|
Maximum reach
|
3400 mm
|
3700 mm
|
3100 mm
|
3100 mm
|
|
Construction type
|
Standard
|
Standard
|
Standard
|
Standard
|
|
Version environment
|
Standard
|
Standard
|
Standard
|
High Inertia
|
|
Mounting positions
|
Floor
|
Floor
|
Floor
|
Floor
|
|
Protection class
|
IP 65, IP 67
|
IP 65, IP 67
|
IP 65, IP 67
|
IP 65, IP 67
|
|
KR 640 R2800-2
|
KR 640 R2800-2 HI
|
KR 800 R2800-2
|
||
|
Payload
|
640 kg
|
640 kg
|
800 kg
|
|
|
Maximum reach
|
2800 mm
|
2800 mm
|
2800 mm
|
|
|
Construction type
|
Standard
|
Standard
|
Standard
|
|
|
Version environment
|
Standard
|
High Inertia
|
Standard
|
|
|
Mounting positions
|
Floor
|
Floor
|
Floor
|
|
|
Protection class
|
IP 65, IP 67
|
IP 65, IP 67
|
IP 65, IP 67
|
The lightest in its class. But incredibly strong, rigid and fast.
